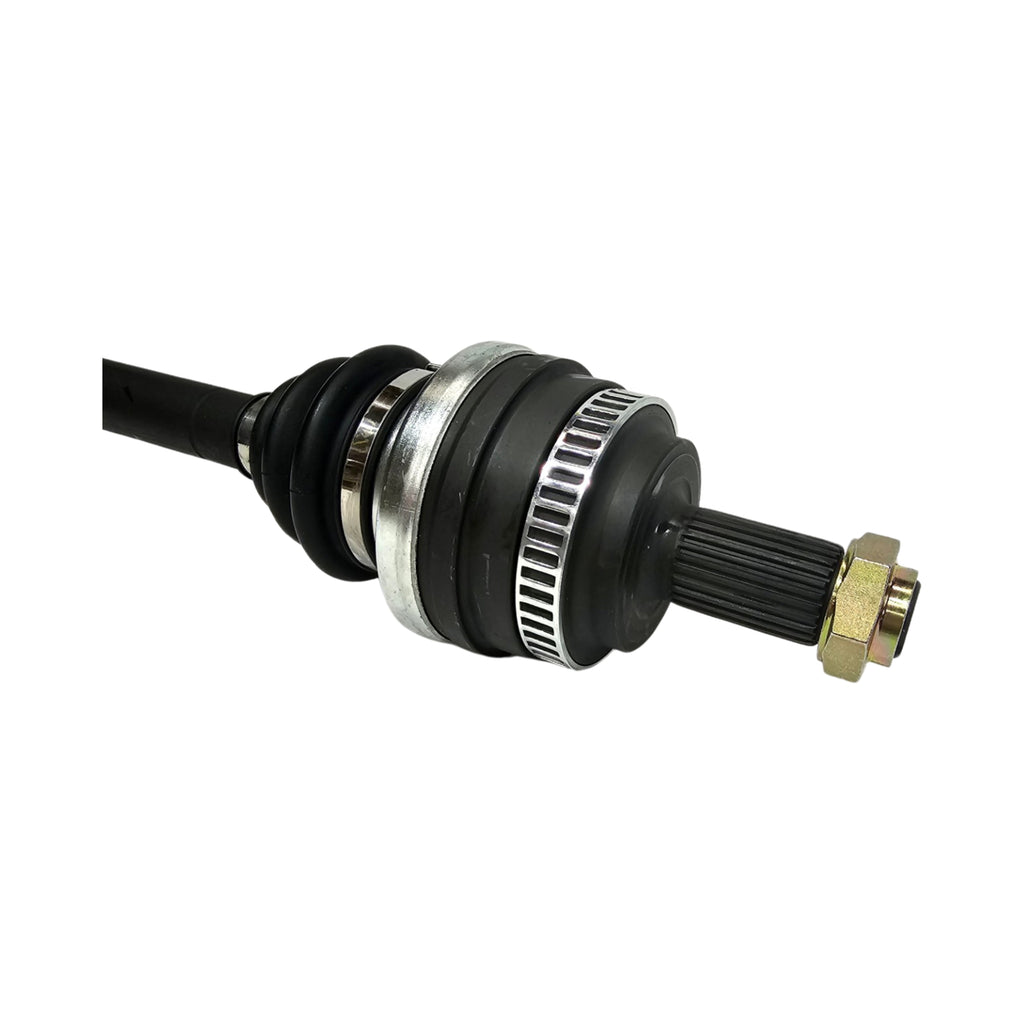

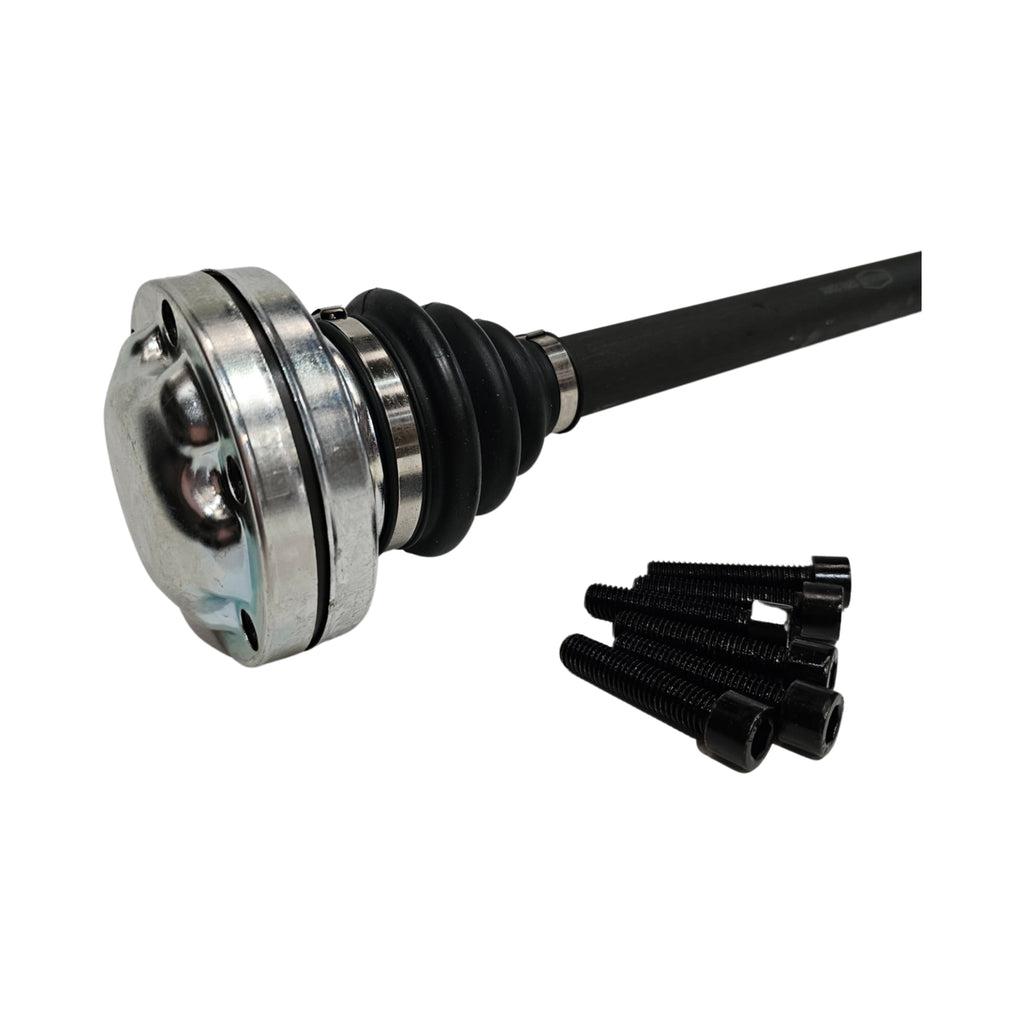

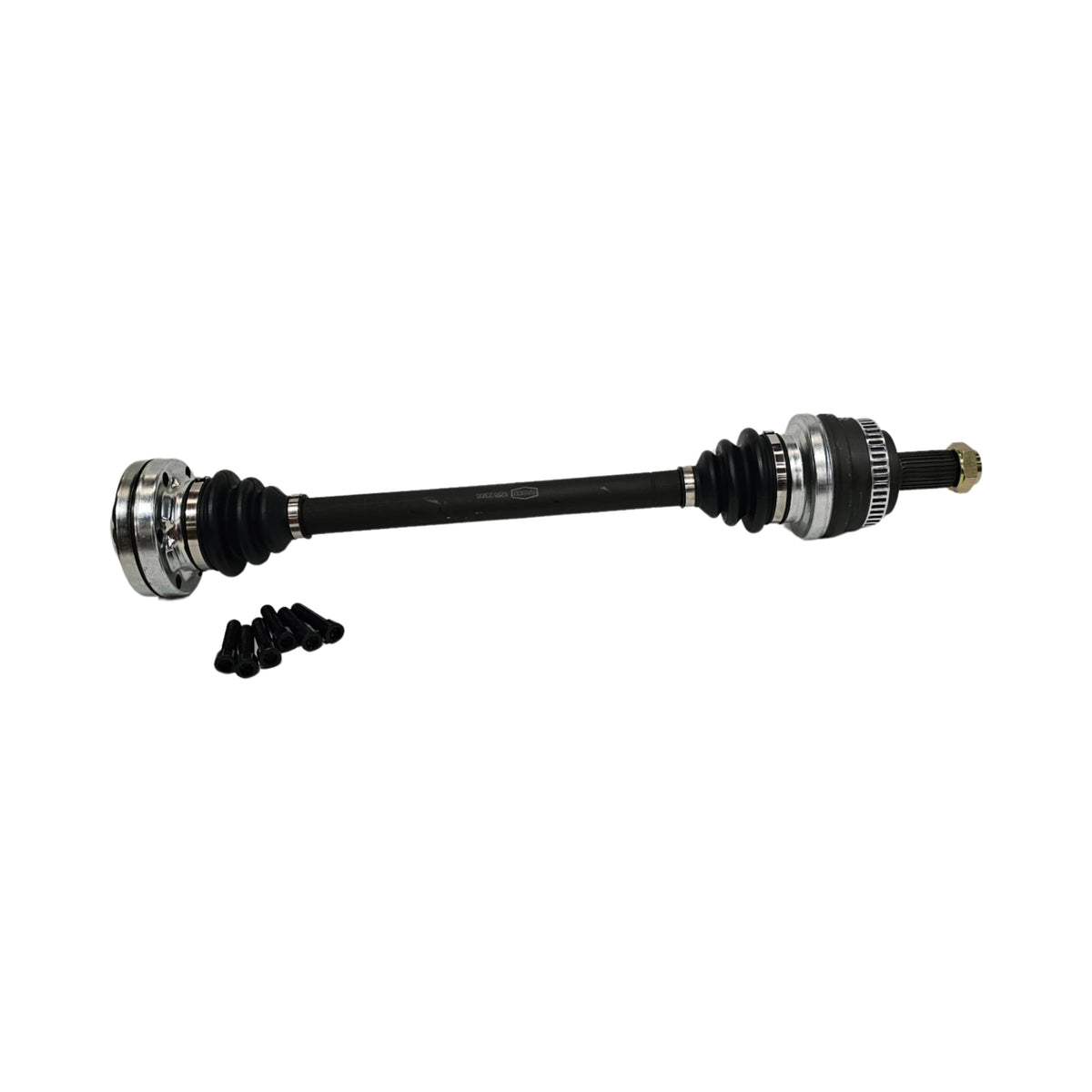

CV Joint Drive Shaft for BMW 120D 320D 323i 325i 328i Z4 1995~2012

CV Joint Axle Drive Shaft - Left Hand Side

Sub Models: Executive, Luminance, Lifestyle, Sport & Sport SMG

Fits

• 120D E87 & E87 2.0 Diesel  05/2006~10/2010 Left Hand Side

• 320D E90 2.0 Diesel  02/2004~01/2012 Left Hand Side
• 323i E36 2.5L Petrol  05/1995~08/1998 Left & Right Hand Side
• 323i E46 2.5L Petrol  09/1998~10/2000 Left Hand Side
• 325i E46 2.5L Petrol  01/2000~06/2005 Left Hand Side
• 328i E46 2.8L Petrol  05/1998~10/2000 Left Hand Side
• Z4 E85 2.0L, 2.2L, 2.5L, 3.0L & 3.2L  12/2002~04/2009 Left Hand Side

The Nitty Gritty

• Length (Compressed): 610mm
• Spline Count - Outer/Wheel Side: 27
• Inboard Joint Type Bolt On: 6 Bolts
• Shaft Thickness: 28mm
• Hub Nut: M24 x 1.5

 

What You Get

1 x CV Shaft

 

Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.

 

What You Really Get

 

Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
